MESMOB - 100

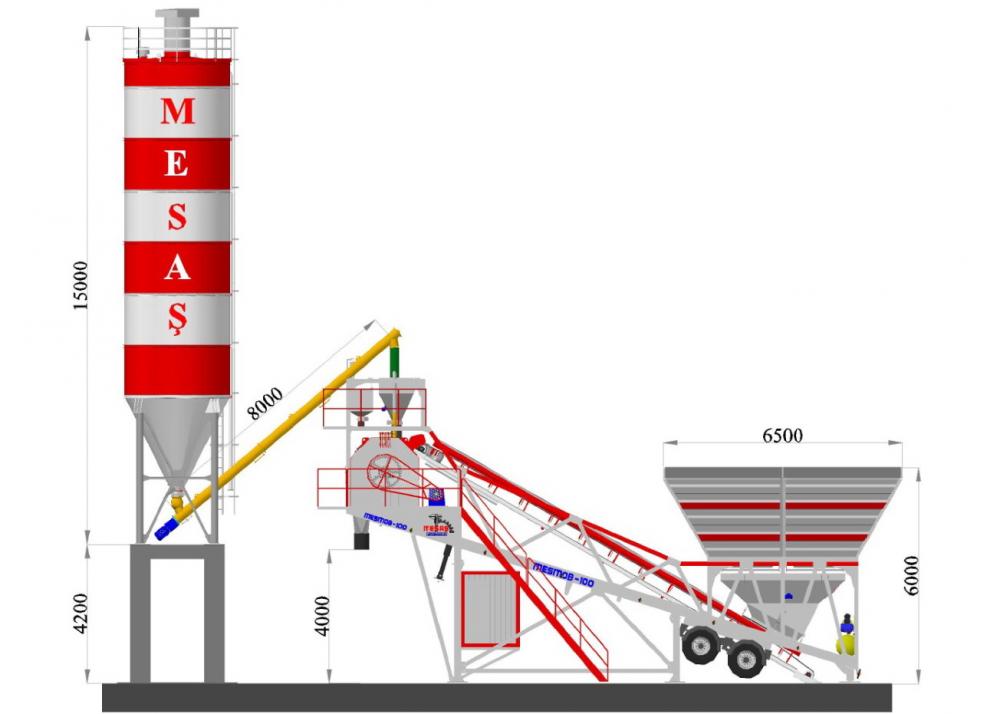

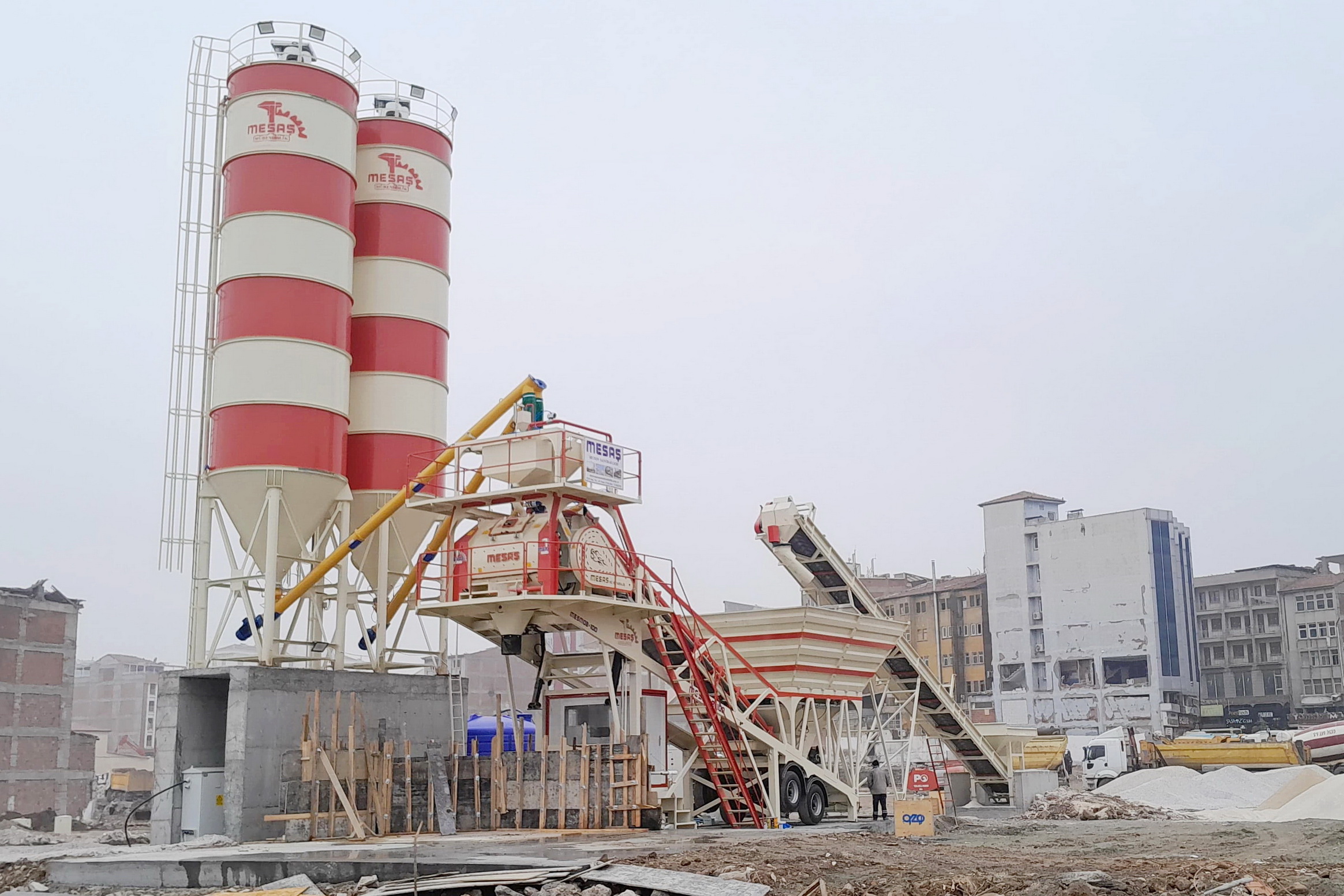

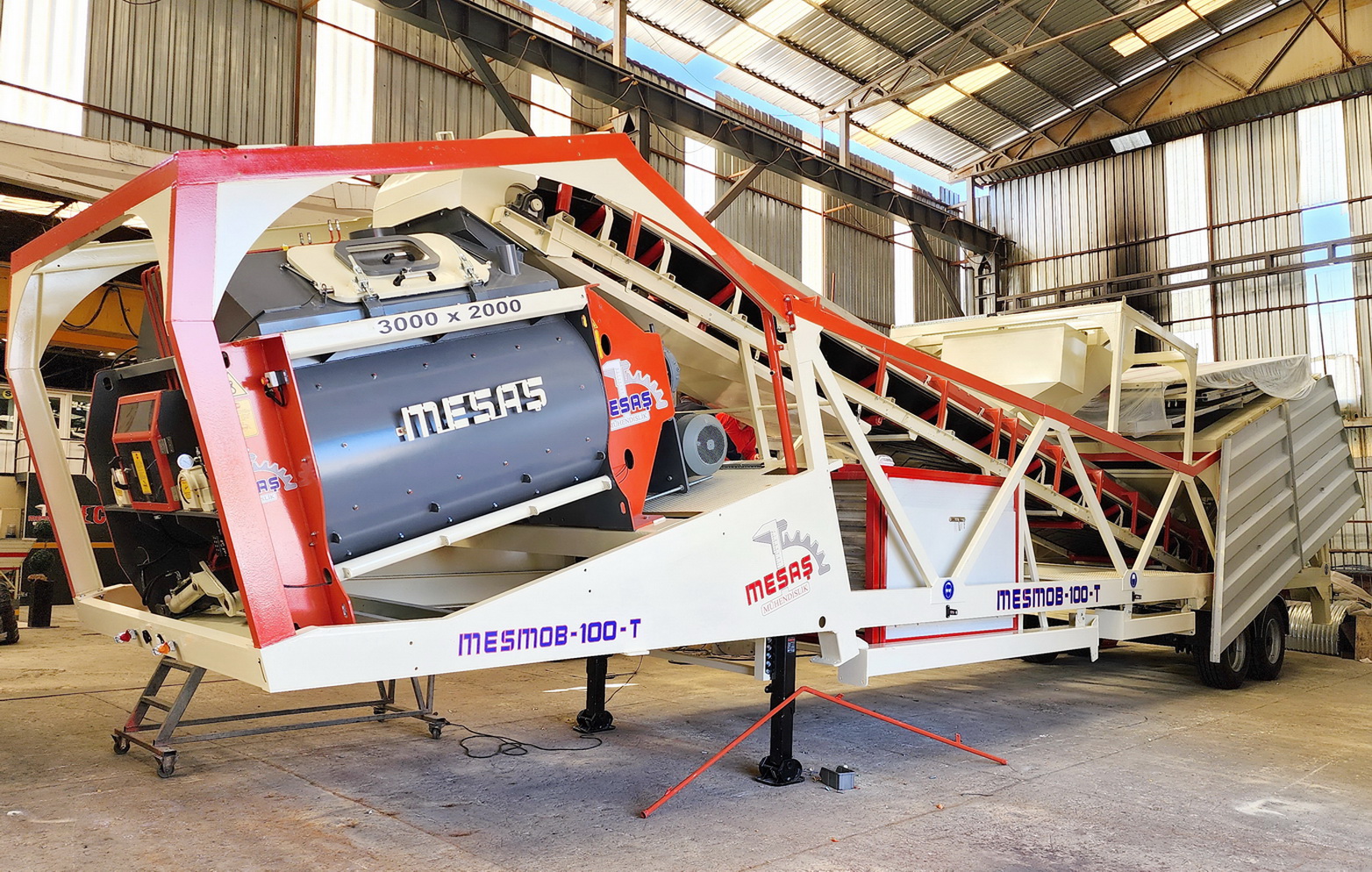

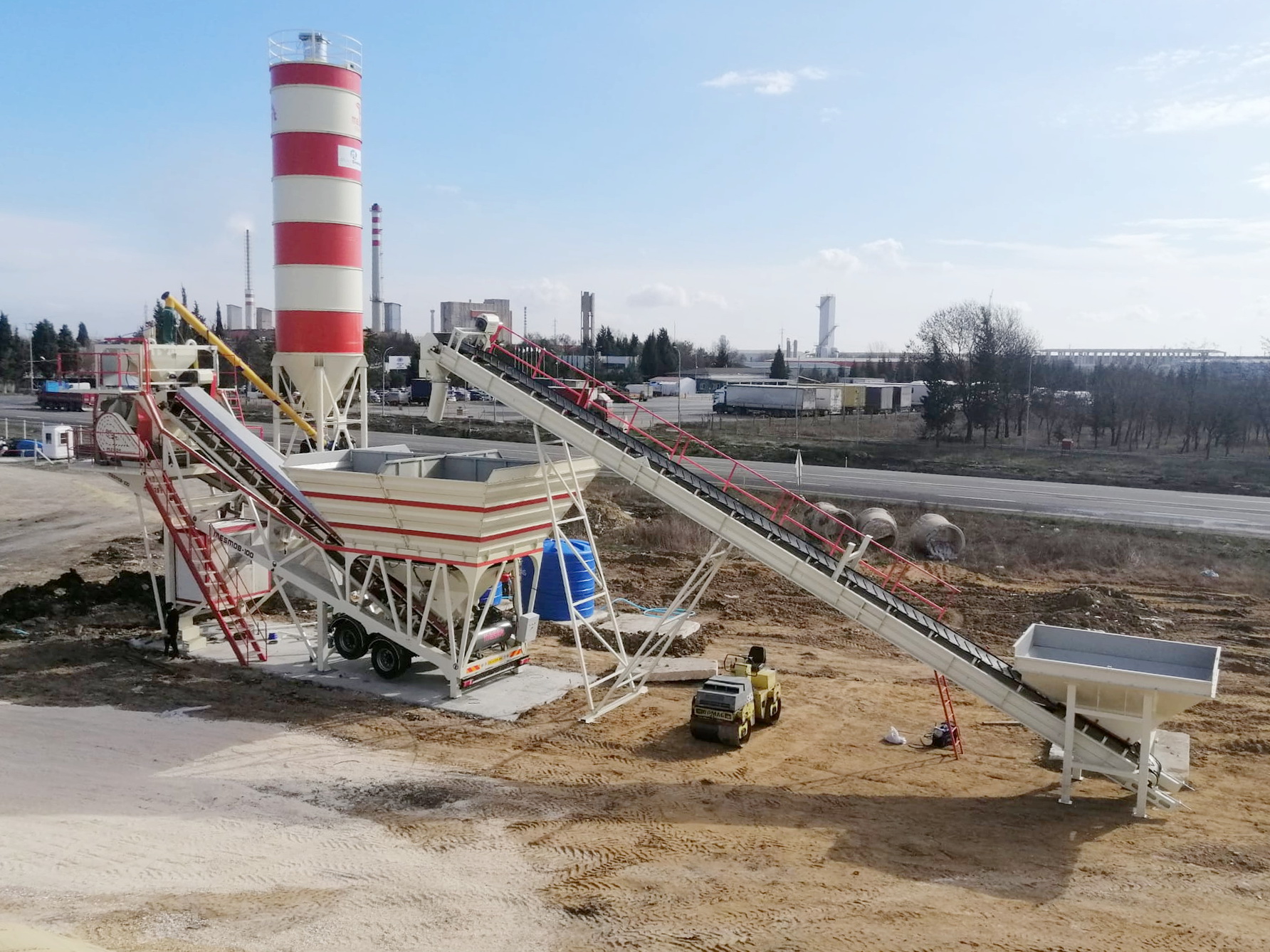

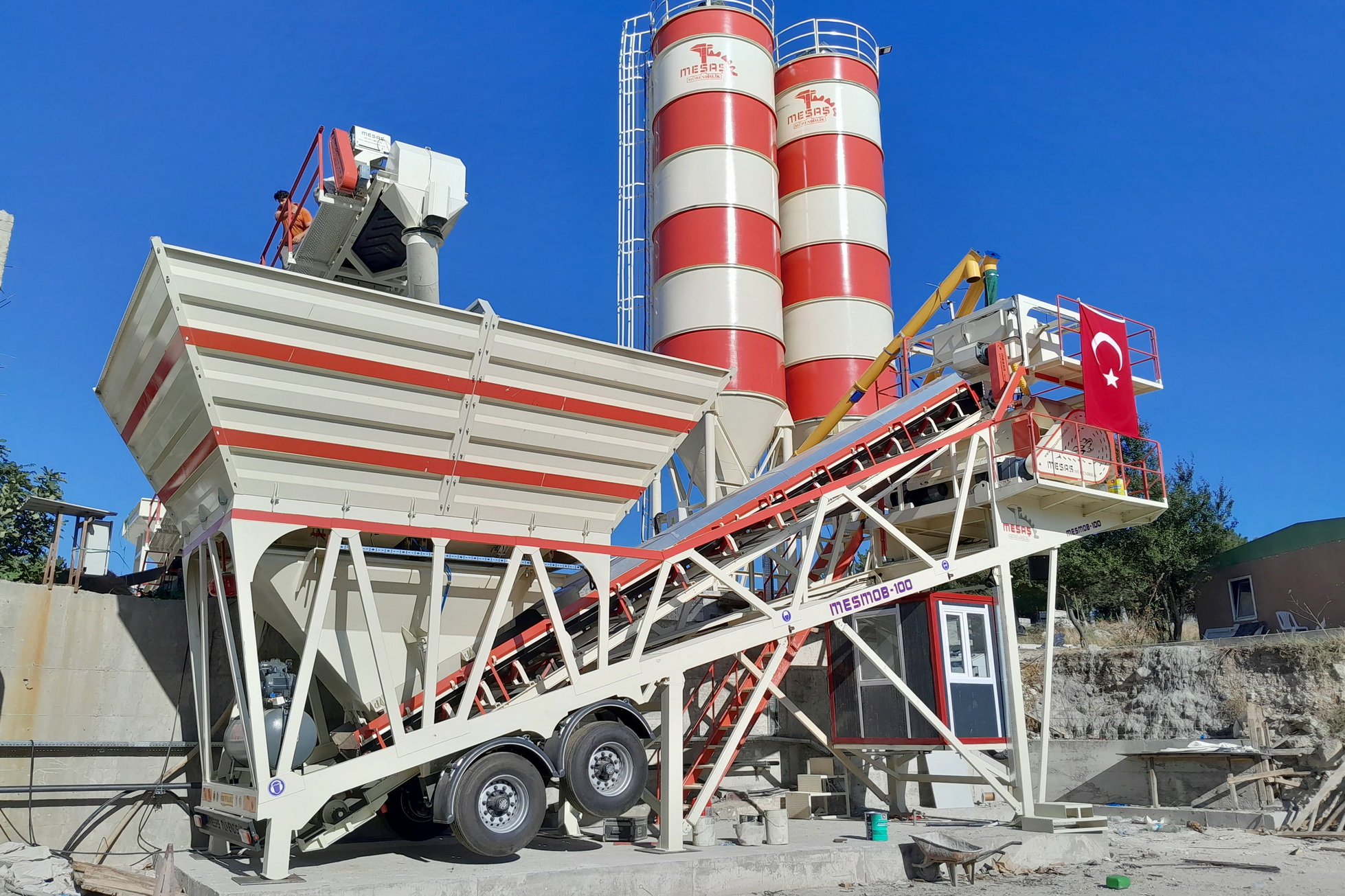

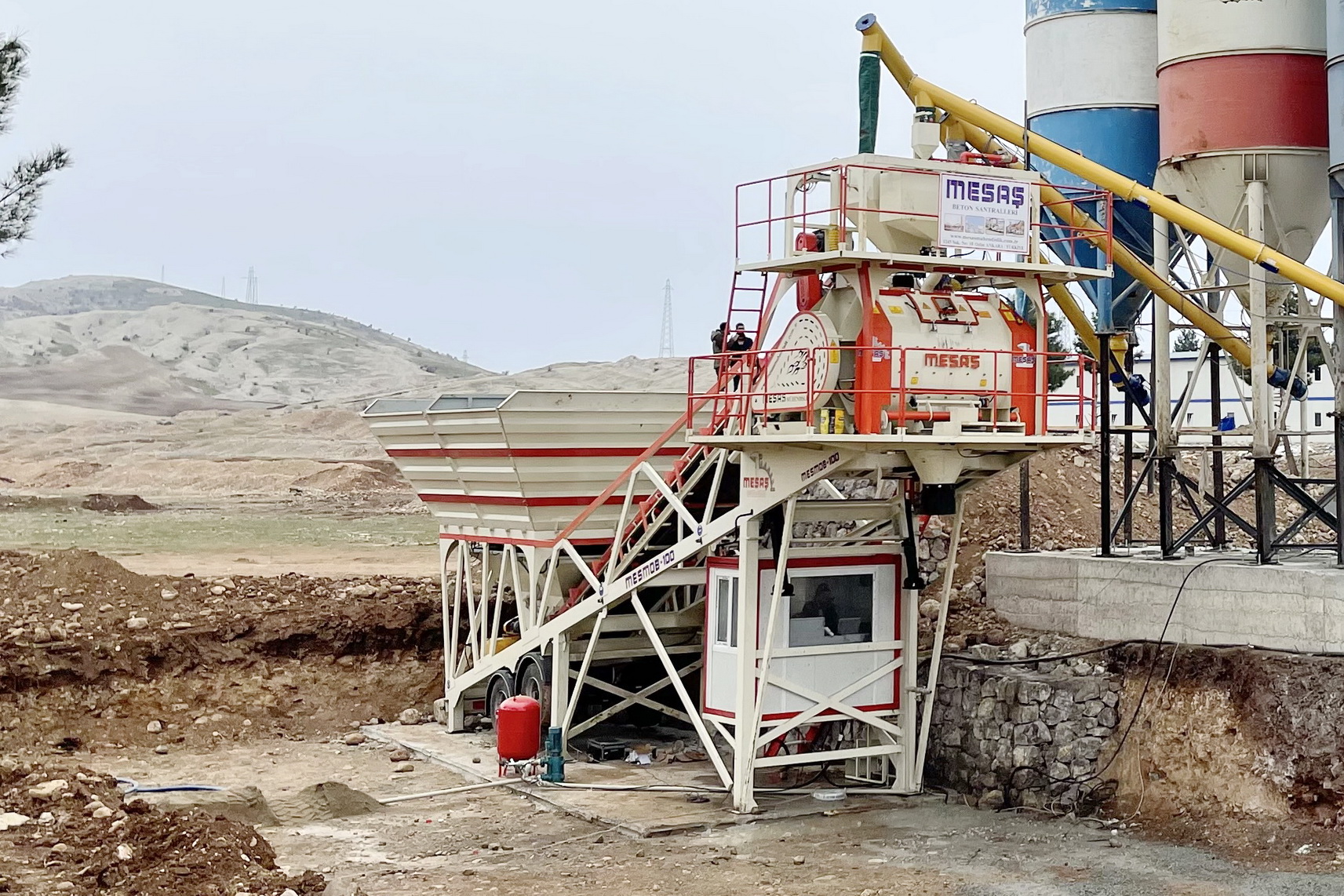

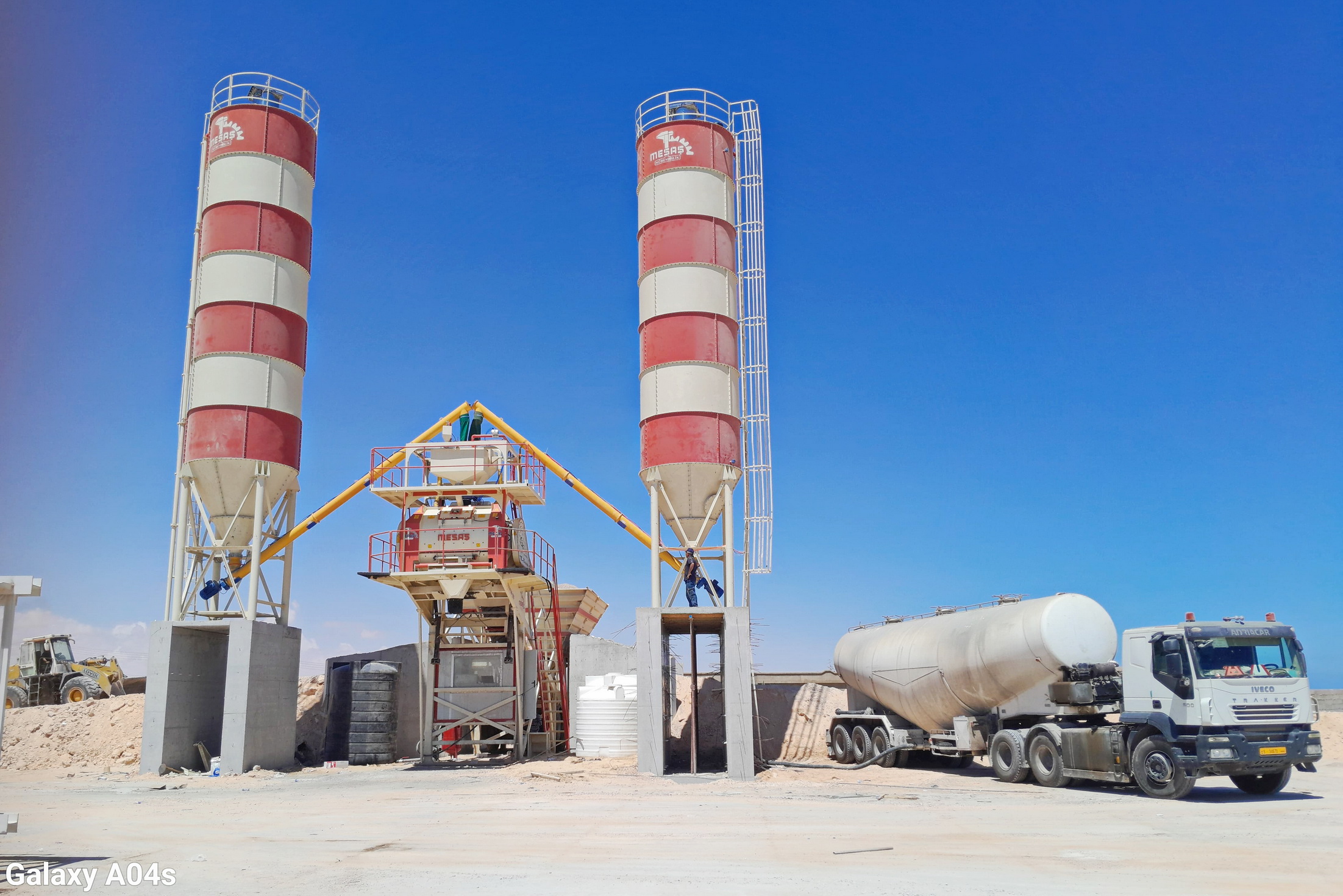

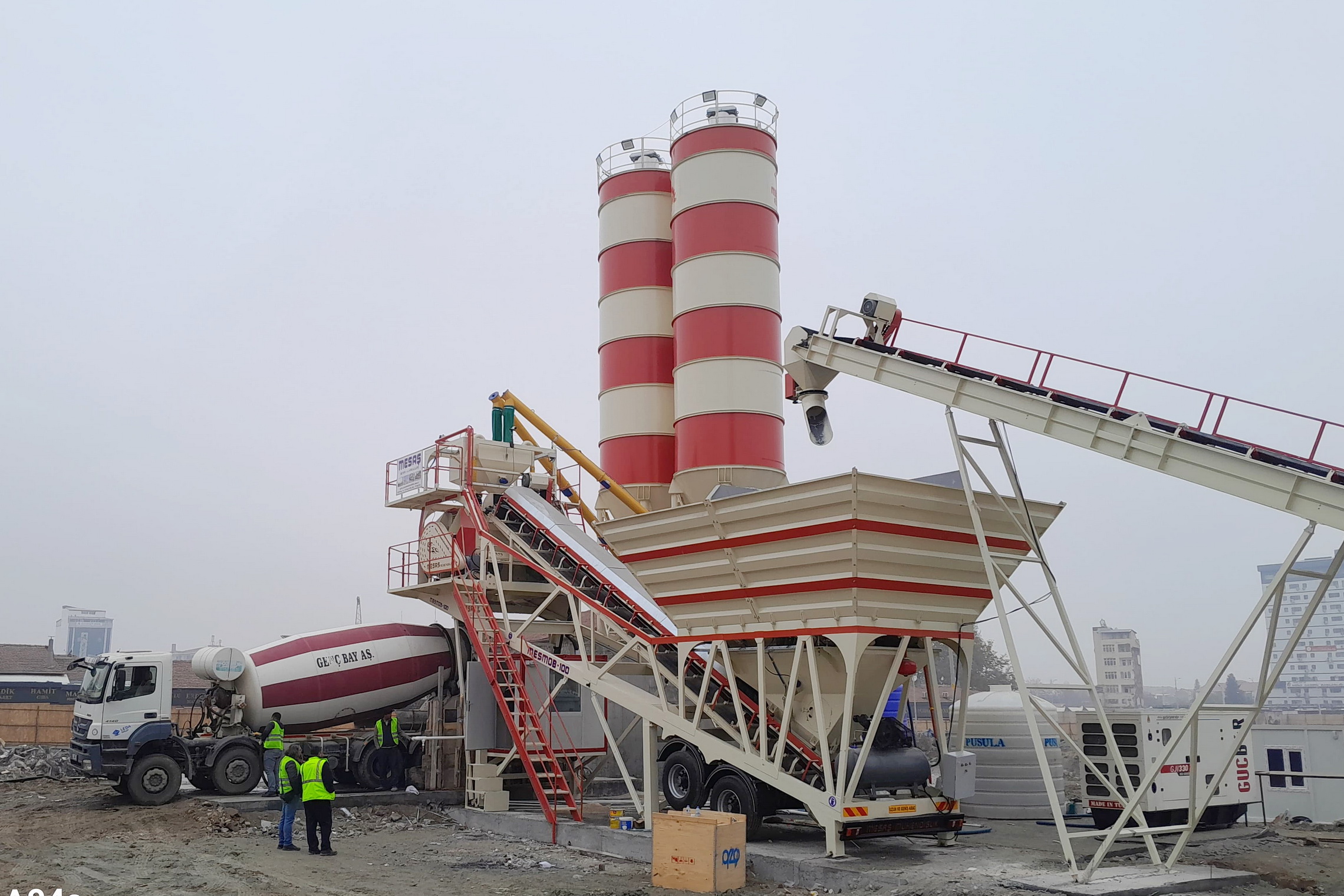

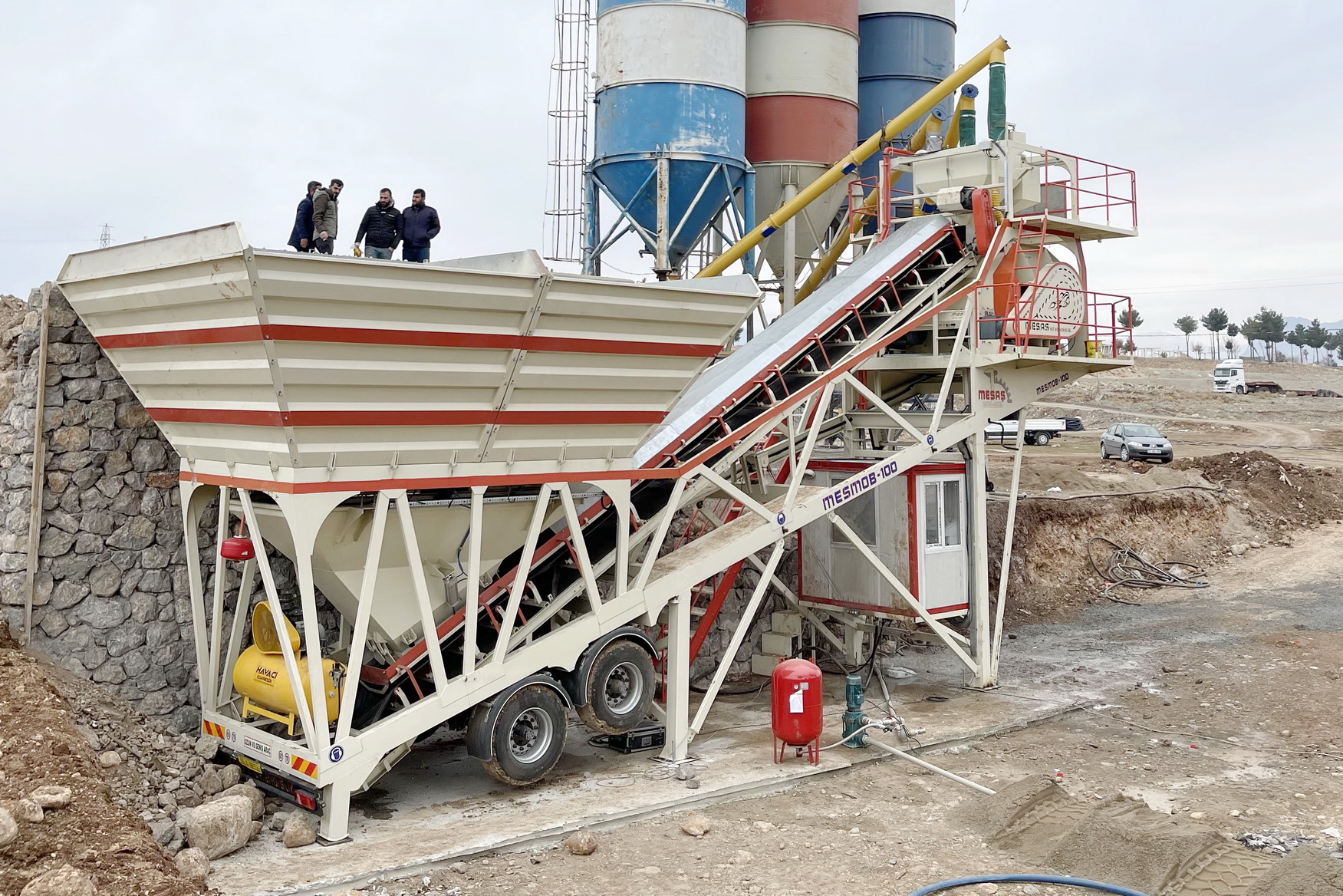

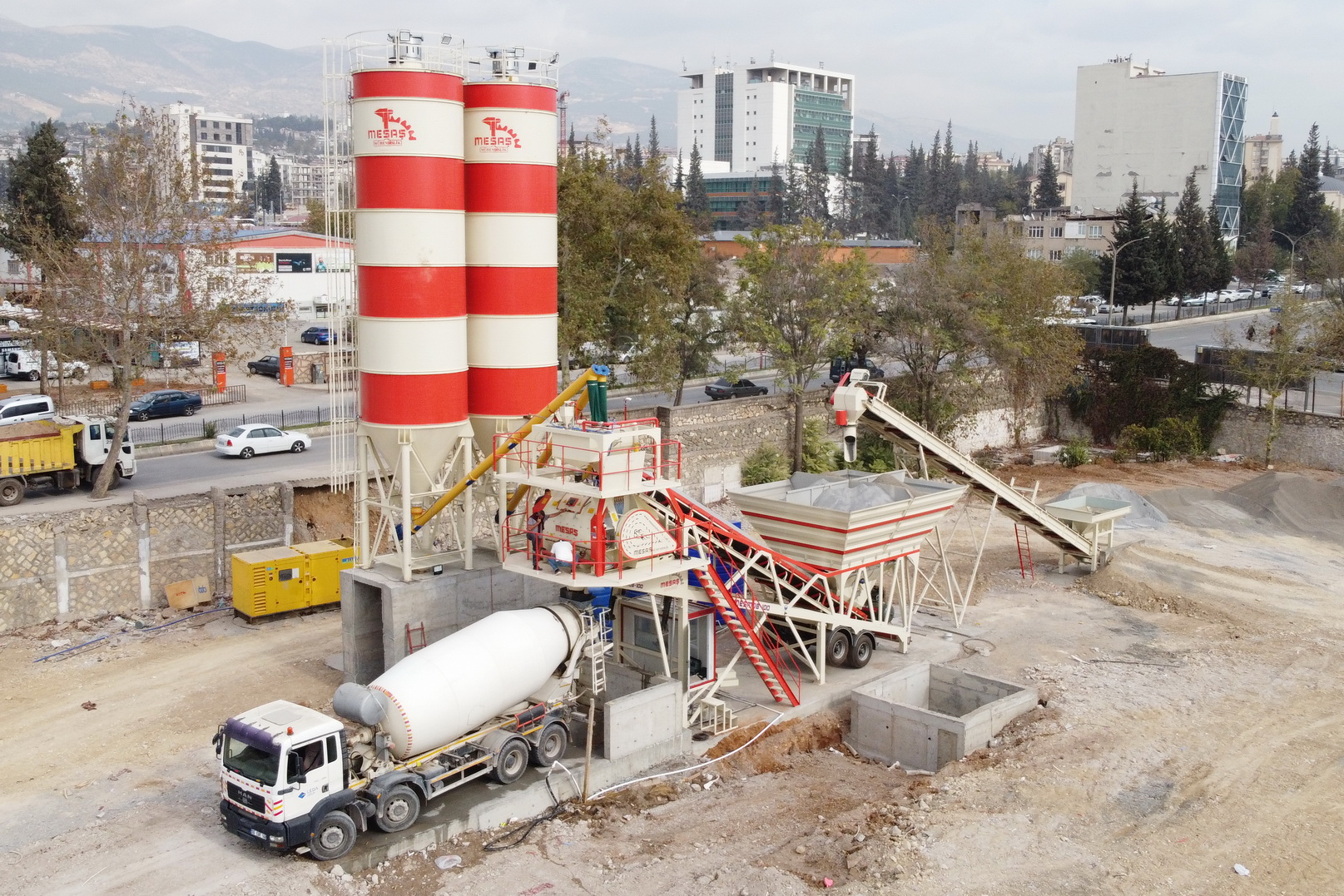

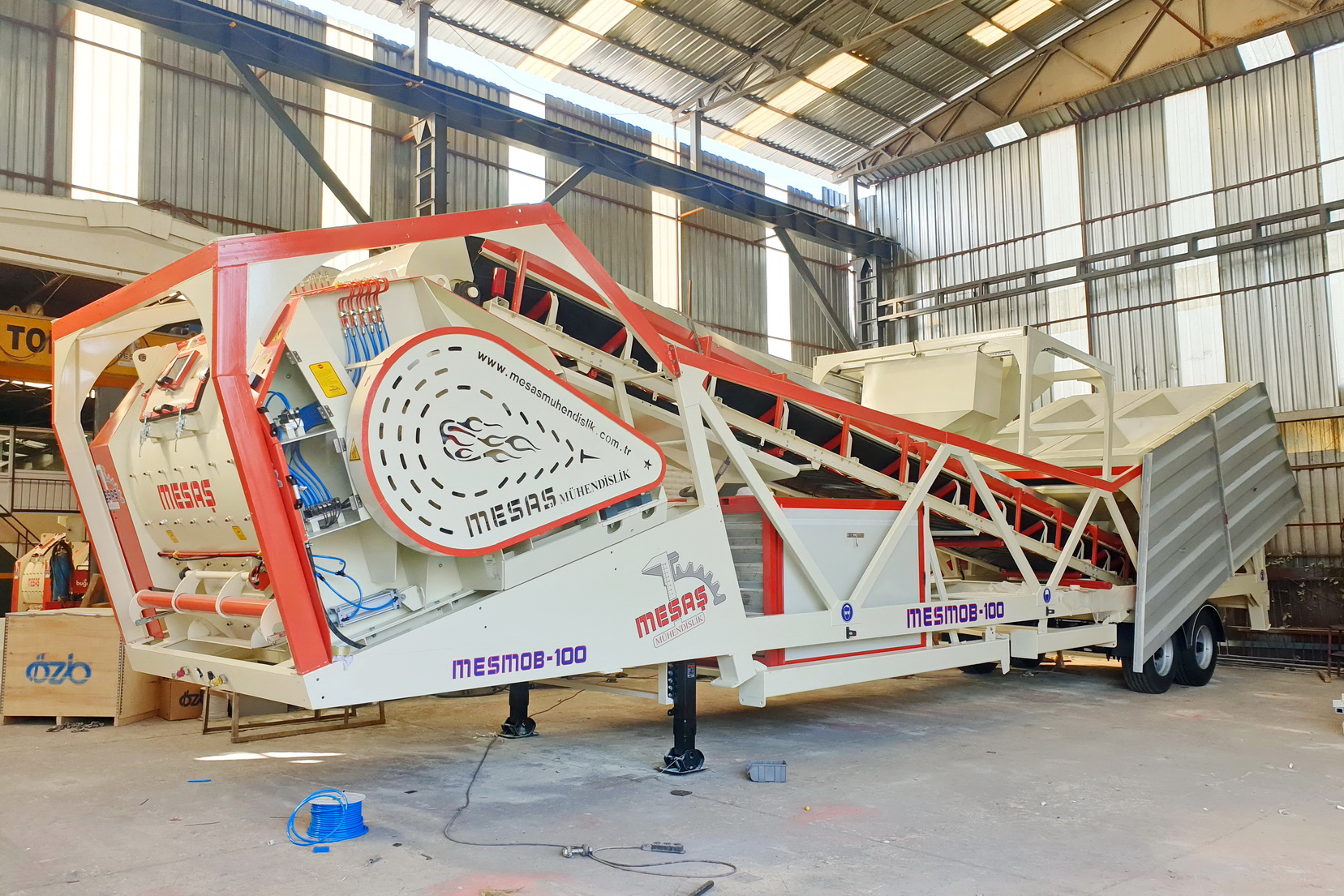

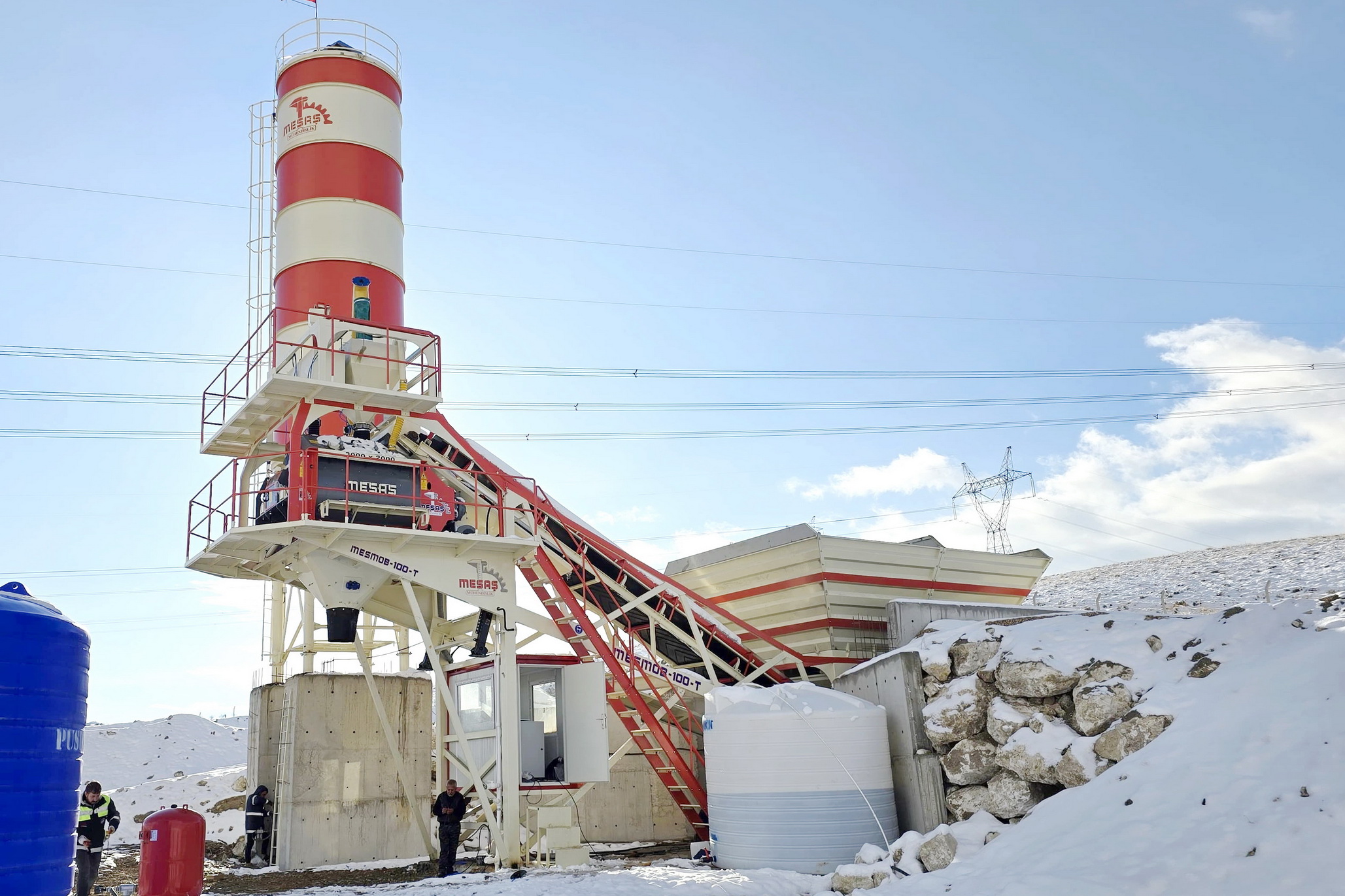

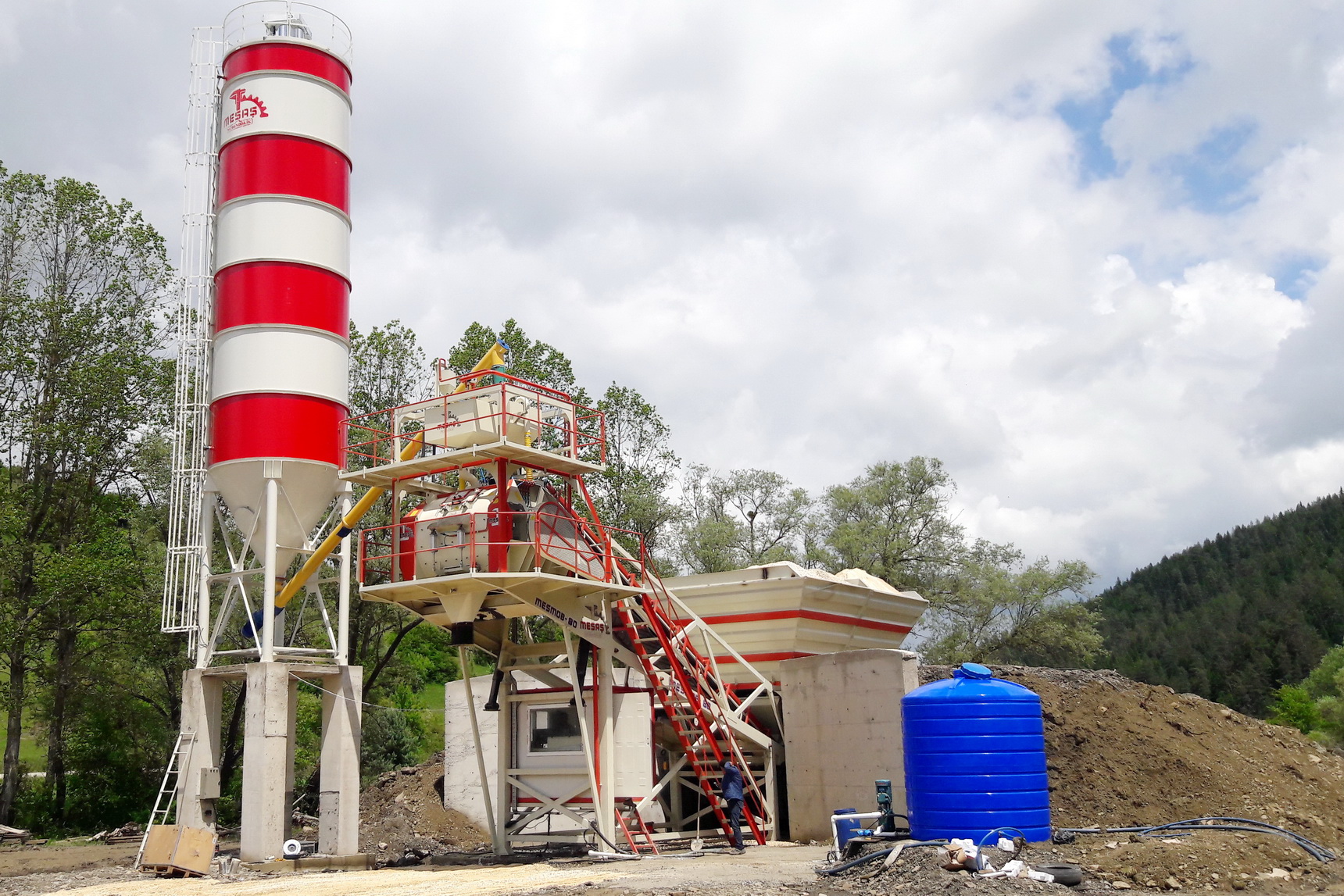

MESMOB-100 Mobile Concrete Plant (100 m3/h)

» Installation time: 3 days

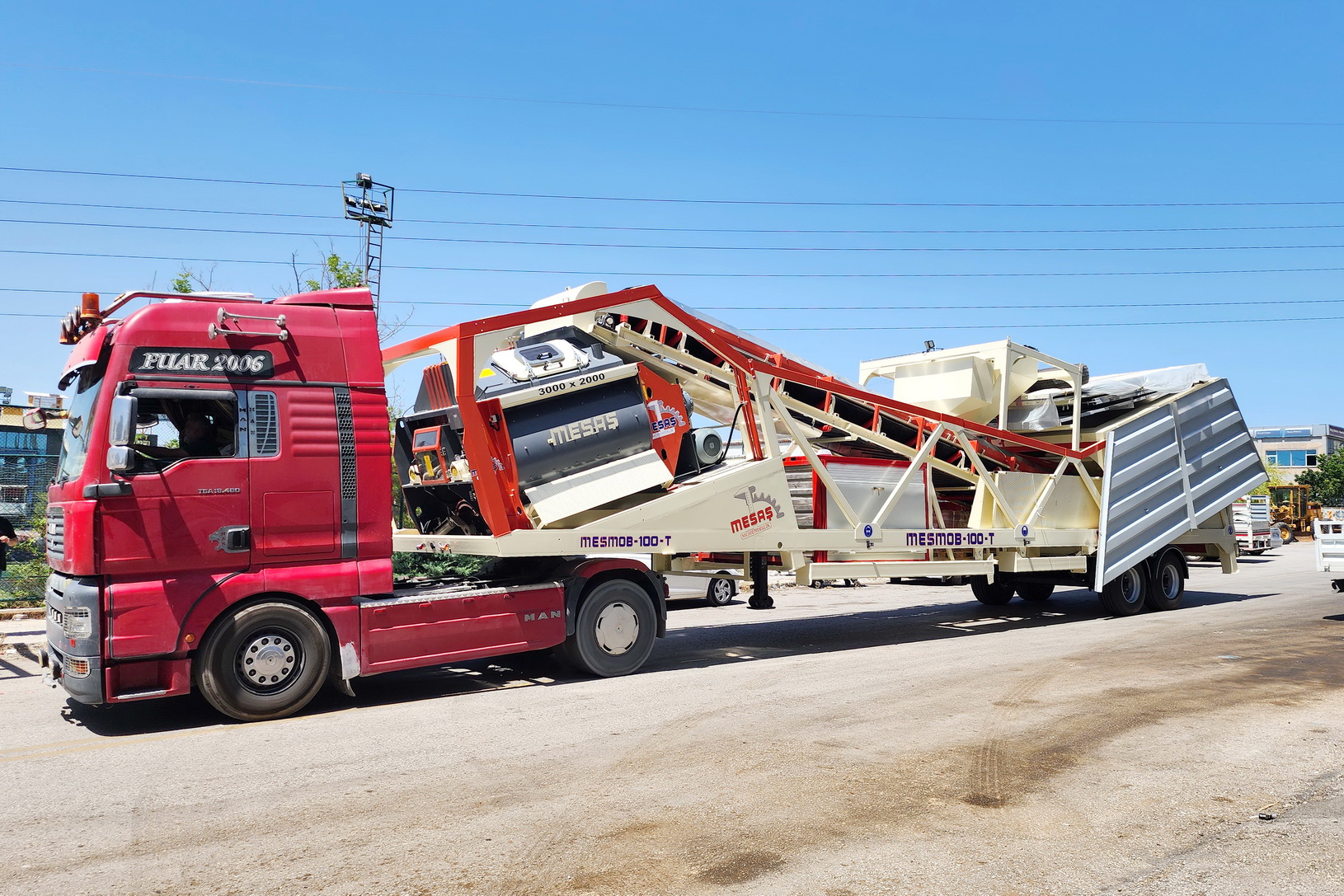

» Transportation with a single truck except the silo
» High quality raw material
» Quick service and spare parts
» Strong mixer wearing plates
» Excellent performance on heavy-duty conditions
» Economic design to reduce costs

PROPERTYUNITVALUE
PLANT CAPACITYm3/h100
BATCHING TYPEWETSingle Shaft
MIXER CAPACITYm32
MIXER MOTOR POWERkw2 x 37

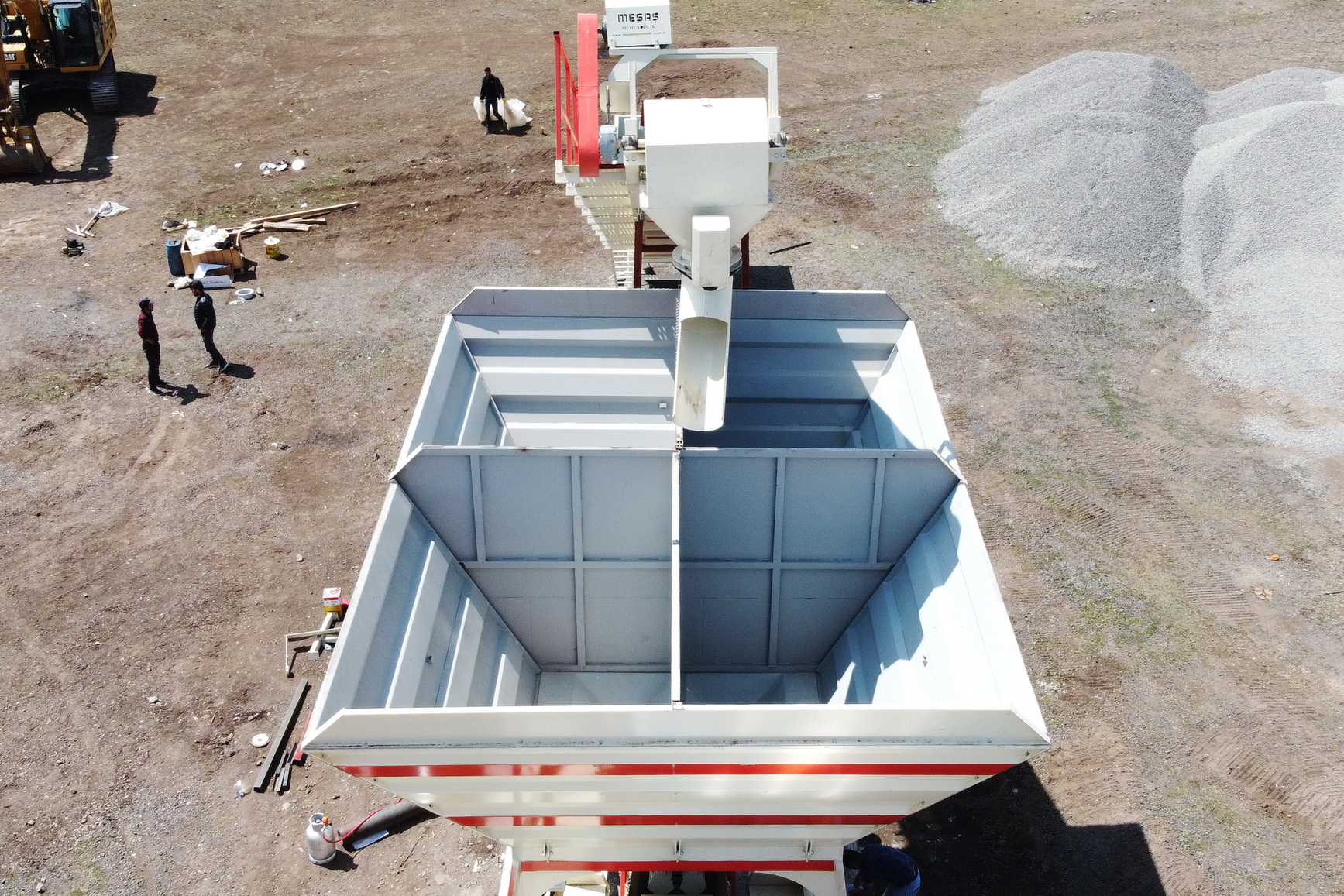

AGGREGATE BUNKERm34 x 15 = 60
WEIGHING BELT CONVEYORmm0
MIXER FEEDING BELT CONVEYORmm1000 x 13000
CEMENT SILOton1 x 100
CEMENT SCREW CONVEYORmm273 x 8000
CEMENT SCALEkg1000
WATER SCALEkg600
ADDITIVE SCALEkg30
COMPRESSORLt500
WATER PUMPkw5,5

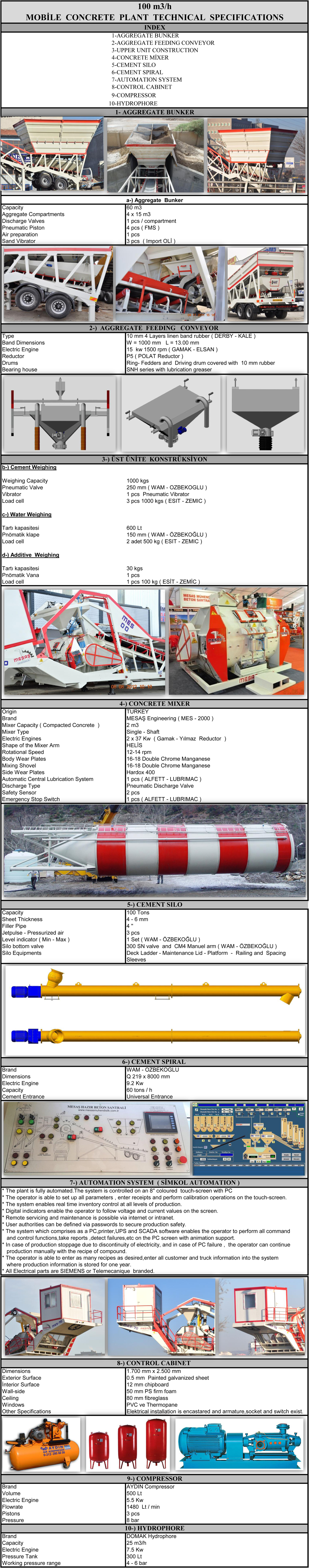

TECHNICAL SPECIFICATIONS
PROPERTYUNITVALUE
PLANT CAPACITYm3/h100
BATCHING TYPEWETSingle Shaft
MIXER CAPACITYm32
MIXER MOTOR POWERkw2 x 37
AGGREGATE BUNKERm34 x 15 = 60
WEIGHING BELT CONVEYORmm0
MIXER FEEDING BELT CONVEYORmm1000 x 13000
CEMENT SILOton1 x 100
CEMENT SCREW CONVEYORmm273 x 8000
CEMENT SCALEkg1000
WATER SCALEkg600
ADDITIVE SCALEkg30
COMPRESSORLt500
WATER PUMPkw5,5
